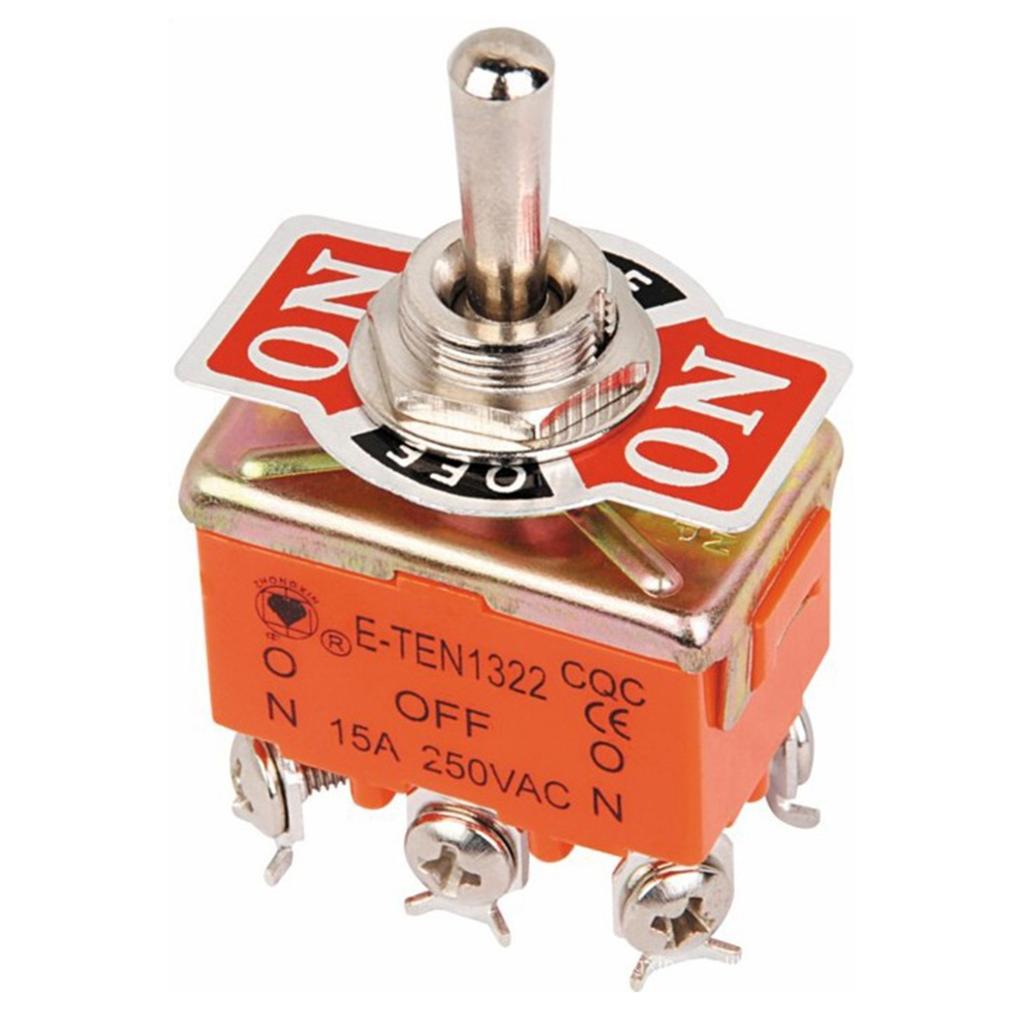

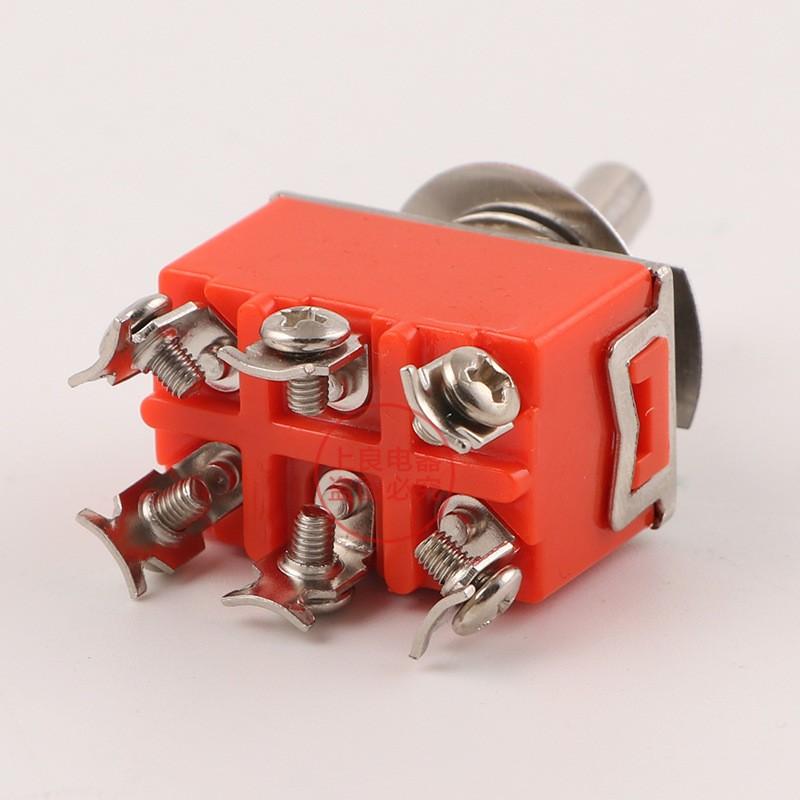

15A Rated Current 6 Pin Switch SPST Switch Toggle Switch

Features: Accurate Design & Reliable Performance: This sleek Single Pole Single Throw (SPST) toggle switch features 3-position (ON/OFF) operation with a 12mm screw hole for secure mounting. Equipped with 6 screw terminals and a self-locking mechanism, it ensures stable performance. Rated for 250V/15A, it offers smooth switching, low contact resistance (≤50MΩ), and high insulation resistance (1000MΩ). Lasting Construction: Built with high-quality materials, this toggle switch boasts a long lifespan, enduring up to 50,000 cycles. Its rugged housing is heat-resistant, wear-proof, and fire-insulated, with excellent mechanical strength and high-temperature tolerance. Easy Installation & Secure Connection: Featuring mechanical screw connectors for quick and hassle-free wiring, this switch also supports easy soldering, guarantee stable and reliable electrical connections. Wide Applications: Perfect for automotive, marine, and industrial uses, its robust design suits cars, boats, yachts, ships, and other equipment requiring dependable switching solutions. Safe & Efficient Operation: With 1NC+1NO contact type, this switch ensures safe and efficient power control. The self-locking mechanism prevents accidental toggling, adding extra security in demanding conditions.

Specification: Part Name: Toggle switch Color: Orange Model: E-TEN1322 Product type: 6 Pin 3 Position Operating structure: self-locking Rated voltage : 250V Rated current : 15A Contact type: 1NC+1NO Hole size: 12mm Contact resistance: ≤50mΩ Insulation resistance: ≥1000MΩ Size: As show Wiring way: screw foot Protection level: IP54 Shell material: flame retardant shell Button handle material: iron Pin material: copper Contact material: copper plated with silver Dielectric Strength: 1500VAC, 1Minute Operating Temperature: -25℃~ +85℃ Mechanical Life: 50,000 cycles Electrical Life: 10,000 Cycles

Package Contents: 1*Toggle switch

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
