Product Functional:
Read fault codes
Clear fault codes
Car freeze frame
I/M ready status
Real time data stream for reading vehicle information
Oxygen sensor testing

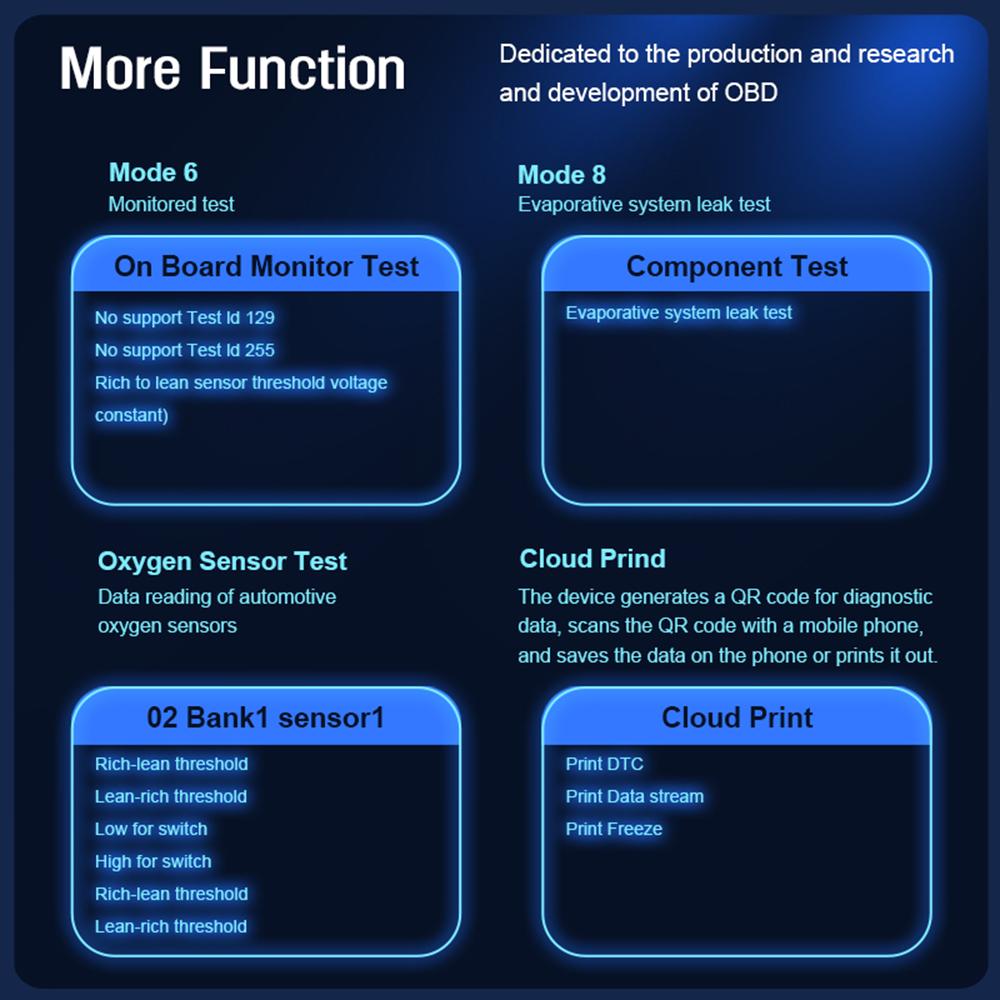

Mode 6 Test
Mode 8 Test
real-time curve
Fault code inquiry
Cloud printing function
Battery voltage detection
I/M, DTC shortcut key functio
40000+fault code library
Color screen display 2.8 inches
Support nine commonly used protocols：
SAE J1850 PWM（41.6 Kbaud）
SAE J1850 VPW（10.4 Kbaud）
ISO 9141-2（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（5 baud init,10.4 Kbaud）
ISO 14230-4 KWP（fast init,10.4 Kbaud）
ISO 15765-4 CAN（11bit ID,500 Kbaud）
ISO 15765-4 CAN（29bit ID,500 Kbaud）
ISO 15765-4 CAN（11bit ID,2500 Kbaud）
ISO 15765-4 CAN（29bit ID,250 Kbaud）
Supported vehicle data:
Read error diagnostic codes
Clear fault codes (clear error codes and turn off MIL)
Engine RPM (revolutions per minute)
Calculated load value
coolant temperature
Fuel system status
speed
Short term fuel situation
Long term fuel situation
manifold pressure
Fuel injection advance time
intake air temperature
Airflow velocity
Absolute position of throttle valve
Oxygen detection voltage associated with short-term fuel state
Fuel system status
Fuel pressure
Fuel consumption monitoring, etc
Note: The number of supported data items varies depending on the model year, and the actual support situation shall prevail.
Supports 11 languages：
1.English
2.German
3.French
4.Spanish
5.Italian
6.Russian
7.Dutch
8.Chinese
9.Japanese
10.Portuguese
11.Polish
Specifications:
Material: plastic
Color: Black Red
Size: see figure
Package Included:
1 x Car Diagnostic Tool
1 x English Manual
