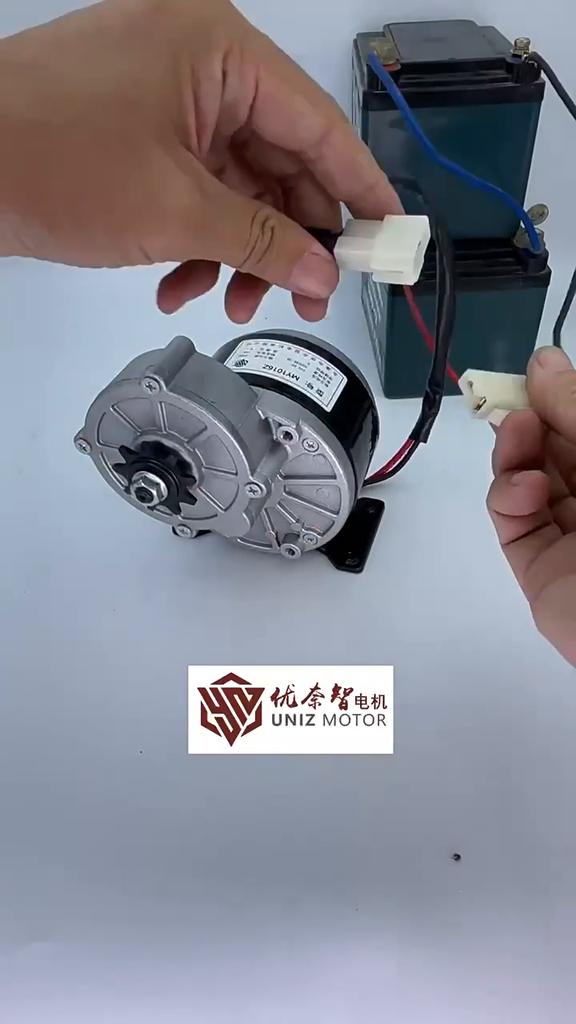

12V 250W Gear Reduction Electric Motor with 9 Tooth Sprocket Brushed DC Motors Reductor for E‑bike Scooter

Rated output power: 250W No-load current: 2.5A Main scope of application: electric vehicles and bicycles Product parameters

Product name: 12V250W 9-tooth motor with feet Type: Brushed DC motor Model: MY1025Z2 Quantity: 1 piece Material: aluminum No-load current: 2.5A Rated output power: 250W Rated power: 250 (kW) Rated voltage: 12 (V) Rated speed: 2950 (rpm) Main scope of application: electric vehicles and bicycles 3C rated voltage range: below 36V DC Rated torque: 0.80N.m Rated current: 13.4A Efficiency: 78% Reduction ratio: 8.9:1

Description: The product is only applicable to the 410 model chain

description

For those who want to make their own customized electric vehicles, whether it is a scooter, an electric bicycle or something else, this kind of motor is very good.This kind of motor with gear reduction produces more low-end torque than your standard motor.

Note: The motor can be rotated clockwise or counterclockwise by reversing the power cord of the motor.

Operation instructions

Packing list

12V250W 9-tooth motor with feet*1
