1.SPSD Series LCD Screen Protect your eyes (24hours Working)
2.Have complete operating protection function(Short circuit protection)
3.Highly efficient, low ripple, small volume, light weight
4.Display voltage, current,power, high precision
5.Voltage stabilization, current limiting, simple operation
6.Single voltage input（Dual voltage input easily destroys power supply）We will Send
the correct input voltage power supply according to your country
7.Temperature control fan heat dissipation, low noise
8.Double potentiometer more precise adjustment
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment
10.Output current ranges from 0 to rating current with continuous adjustment
1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.
3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system

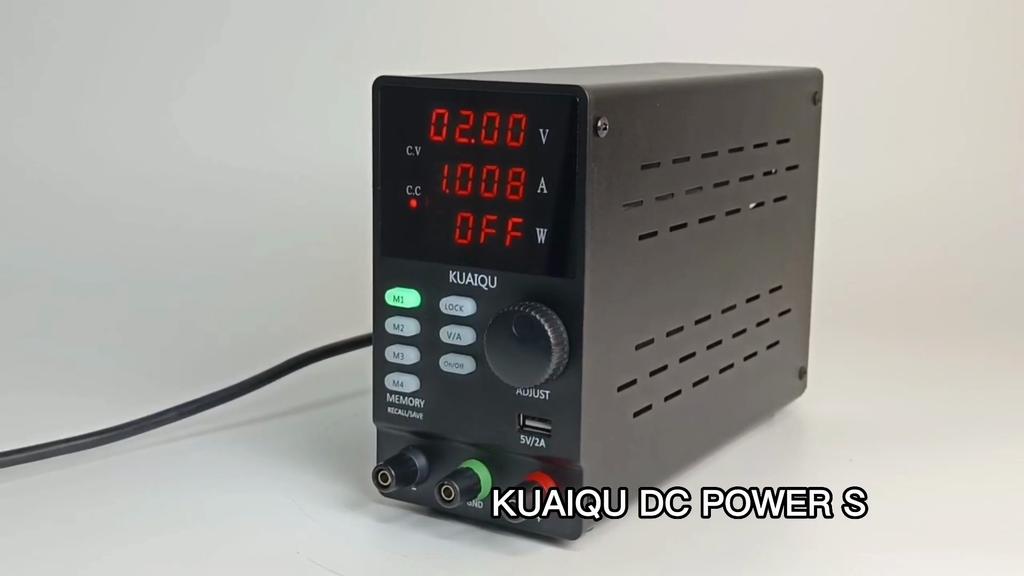

Model Name SPPS3010D
Output Voltage 0-30V
Output Current 0-10A
Output Power 300W
Input Voltage 230V±10% 50Hz or 115V±10% 60Hz
Working Temperature
Working temperature:0℃-40℃;relative humidity:<80%RH
Storage temperature
:-10℃-70℃;relative humidity:<70%RH
Data storage function
Four groups of voltages and currents can be stored
Constant voltage State
Voltage stability:0.1%±3mV
Low Voltage:0.2-0.3%+3mV
Load stability: 0.5%±3mV
Ripple noise ≤30mVrms
0 to rated voltage continuously adjustable
Constant Current State
Current stability:0.2%+3mA
Load stability: 0.2%±3mA
Ripple noise ≤20mArms(Valid Value)
Recovery time:≤500μS
Temperature coefficient:≤100ppm/℃
0 to rated current continuously adjustable
Display
Display size:5.3cm*4.8cm
Screen type:Colorful LCD Screen(Protect eyes)
Display accuracy:0.5%±2digits
Display resolution voltage :0.01V
Display resolution Current :0.001A
Display resolution power :0.001W
Product size
Long 25.2cm x Wide 17cm x High 8.4cm
USB interface
5V 2A for mobile phone repair and charging
Net weight 1.5Kg
Fuse standard
3.15A(AC 230V inpute) ,5A (AC 115V inpute)
Product color
White or Black
Built-in cooling fan
Smart turn on when temperature over 50℃
Your package include :
1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
2X Protective Sponge
1X Certificate of Conformity(1 Year)
