Aokin XL6019 Automatic DC/DC Converter

Type : Voltage Regulator Condition : New Application : Computer Supply Voltage : 5-32V Dissipation Power : 20W Operating Temperature : / Model Number : XL6019 is_customized : Yes Brand Name : AOKIN Type : Electronic module Package : Other Description :

Conventional constant voltage output function: Internal MOSFETintegration, with lessperipheral devices.

Wide input voltage range: the highest input voltage is up to 35V

Adjustable output voltage: the highest output voltage is up to 40V

Build-in over-temperature andOver-current protection: ensure the safety of circuit.

Suitable for boosting power within 30W

Specifications :

Input Voltage: DC 3 V to 40 V (recommended: 3v-35v) Output Voltage: 5 V to 45 V(recommended:5v-40v) Input current 5 A MAX (recommended:0-3A) Conversion efficiency: Up to 94 % (the greater the pressure difference, the lower the efficiency) Switching frequency: 220 KHZ Output ripple: 100 mV (the higher the voltage, current, the ripple is larger) Load regulation: plus or minus 0.5% Voltage regulation: plus or minus 0.5% Working temperature: - 40 ℃ to + 85℃ Overall dimensions: 43 mm x 21 mm to 14 mm (length x width x height)

Package Included:

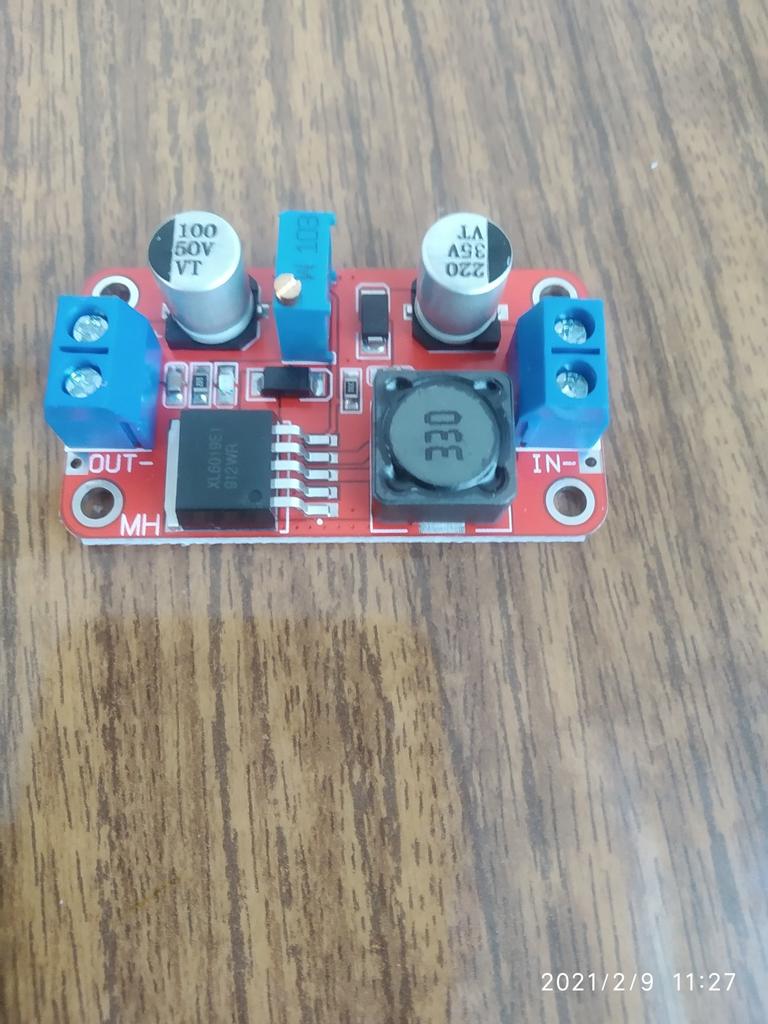

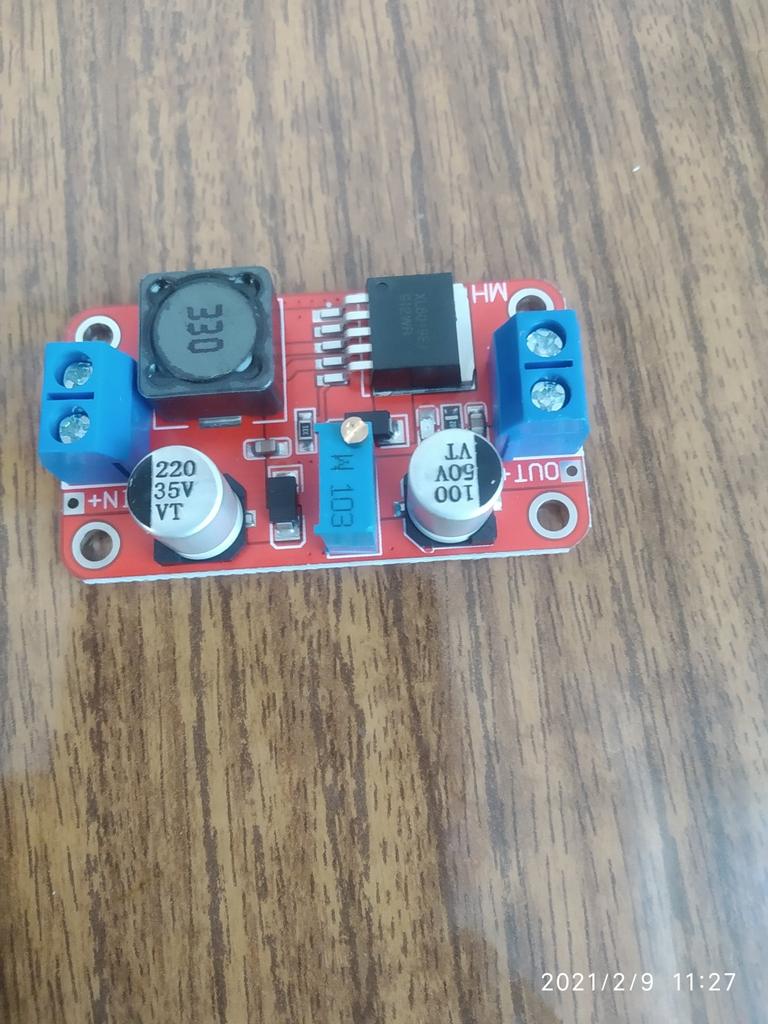

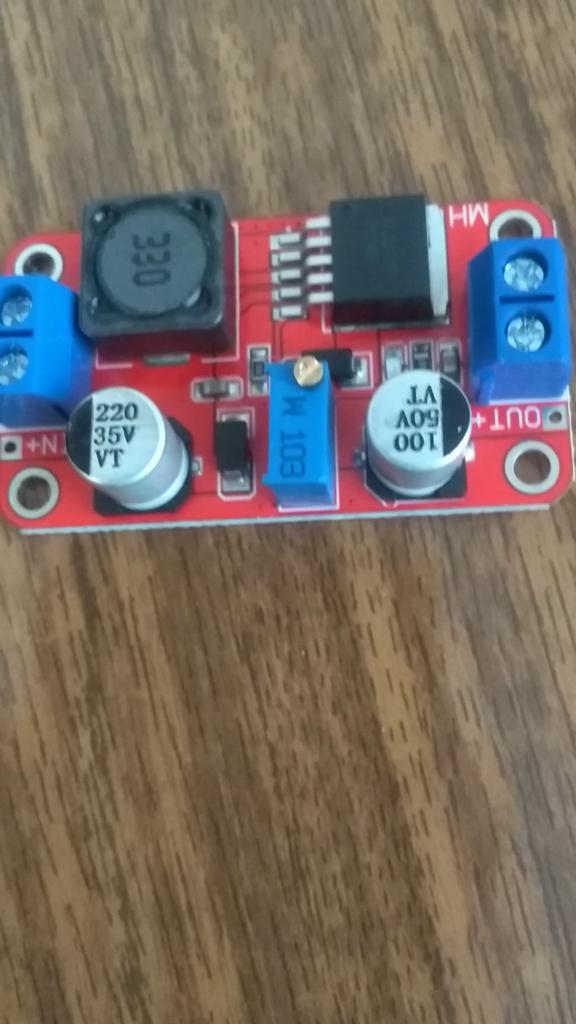

1 X Adjustable Boost Power Supply Board Module
