Sold and shipped by Japanese sellers
* Operated by Japanese sellers - Japanese sellers with trust and experience.
* Direct from Japan - All items are carefully packed and shipped promptly from Japan.
* Highest quality control - Inspected by Japanese standards to ensure high quality products.
---------------------------------------------------------------------------------
【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

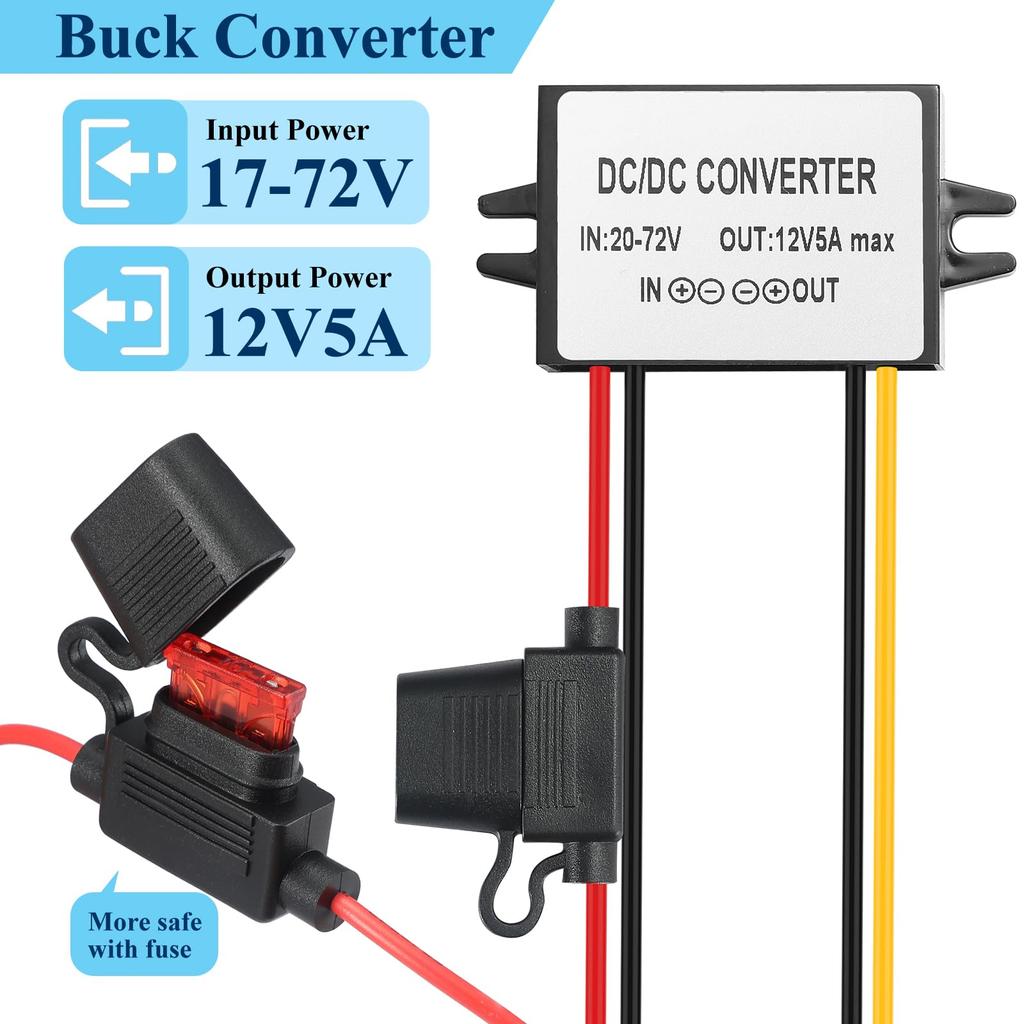

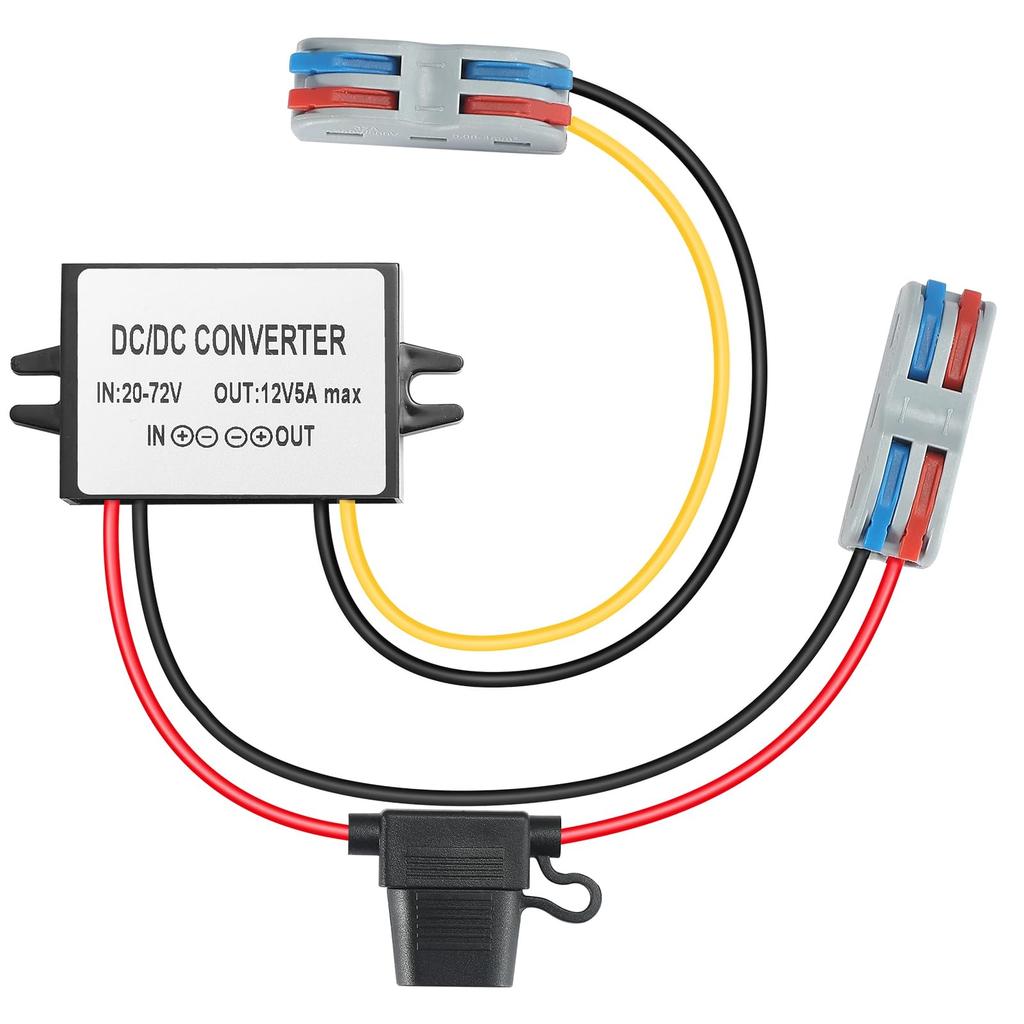

Step-down Converter: DC 20V-72V to DC 12V 5A step-down converter with stable performance and over 90% conversion efficiency, durable and excellent thermal protection, internal bonding and aluminum alloy outer casing for excellent fluidity.
Voltage range; Input voltage range: 20V-72V; Output voltage: 12V; Output current: 5A; Maximum output power: 60W; Small size and easy to place in any application; The converter is shockproof, waterproof, dustproof, stable and reliable quality
Intelligent protection: Supports output short circuit protection, overcurrent protection, waterproof IP67 protection, overheat protection

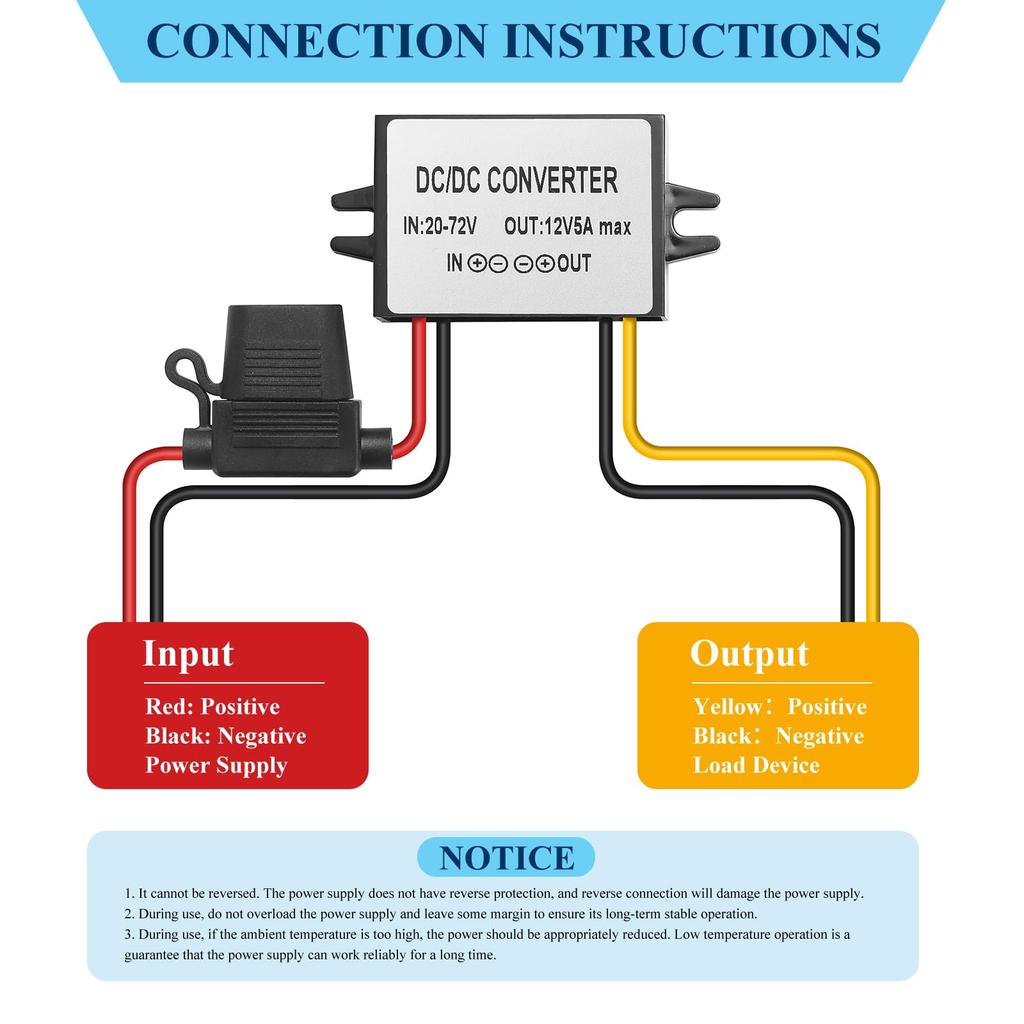

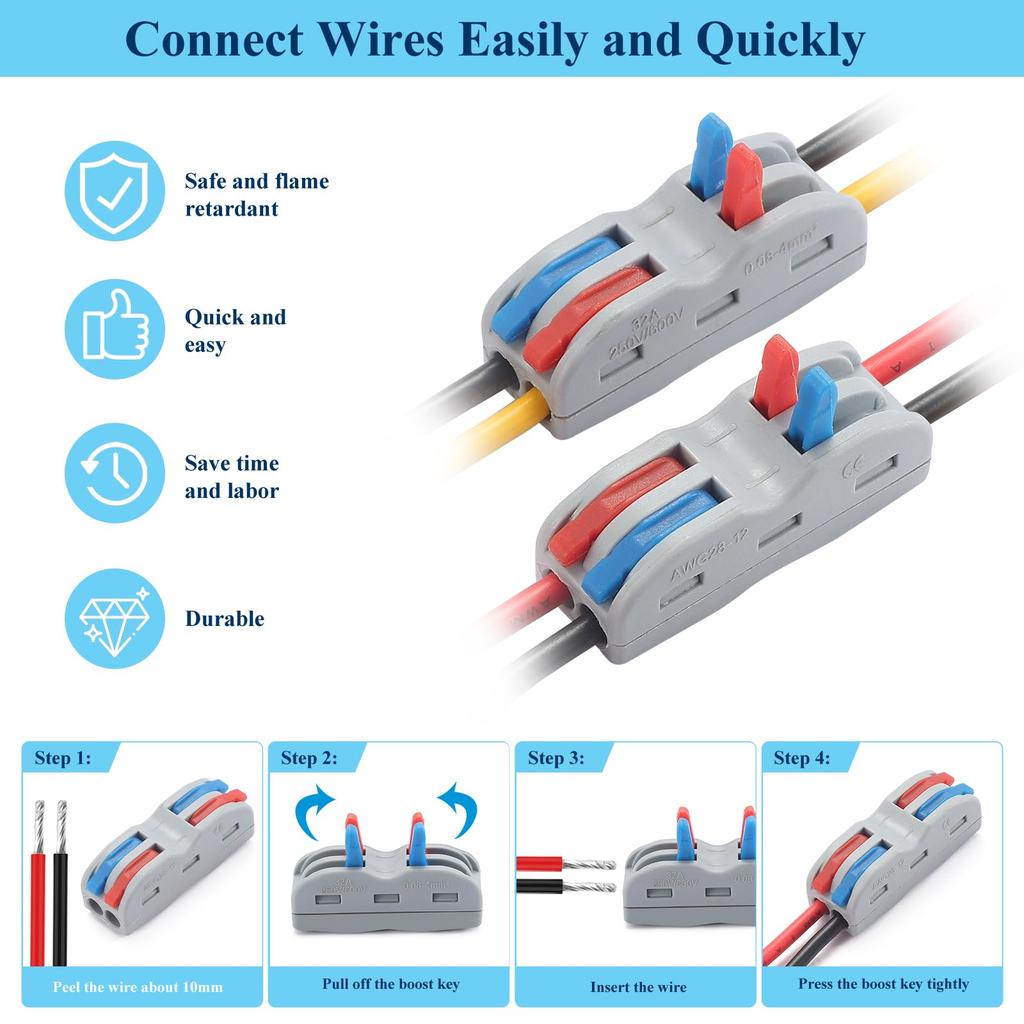

Installation: Easy to install, just peel the wire about 10mm, pull the boost key 90°MAX, insert the wire, and press the boost key firmly; the converter has red, yellow and black wires, the red and yellow are connected to the positive electrode, and the black is connected to the negative electrode
Wide application: Wide range of use, excellent voltage reducer can be used for LED light strips, monitoring systems, golf carts, solar panels, speakers, car headlights

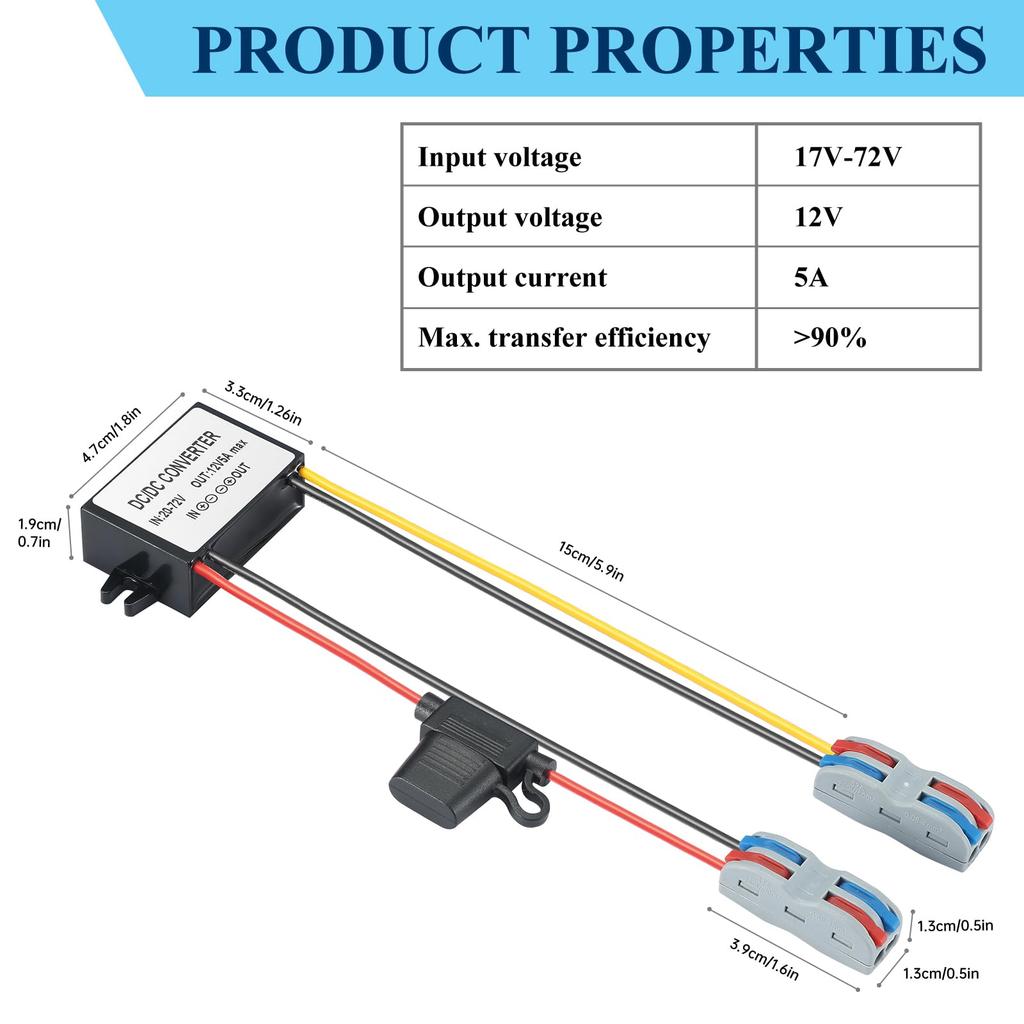

Product Information: Input Range: 20V~72V Transfer Efficiency: 90V Output Voltage: 12V Output: 5A MAX Maximum Output: 60W MAX Working Temperature: -20 to 65°C Storage Temperature: -40 to 85°C Working Humidity: 10%~90%RH Waterproof Classification: IP67 Short Circuit Protection: Yes Overheat Protection: Yes Overcurrent Protection: Yes Anti-Connection Protection: Yes Heat Dissipation Method: Natural Heat Dissipation Notice: 1.The product is stored in a dry, cool place at a temperature between 40°C and 80°C, avoid contact with corrosive substances and stay away from flames and heat sources. 2.Do not use the device near heat sources, such as fire or heaters. 3.Do not connect the input line to 220V electricity. 4.Do not put the product in fire or heat it. 5.Do not short-circuit the positive or negative poles of the product with wires or other metal objects. 6.It is forbidden for non-professionals to disassemble and repair the product by themselves.
