Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.
1. KEY FEATURES:

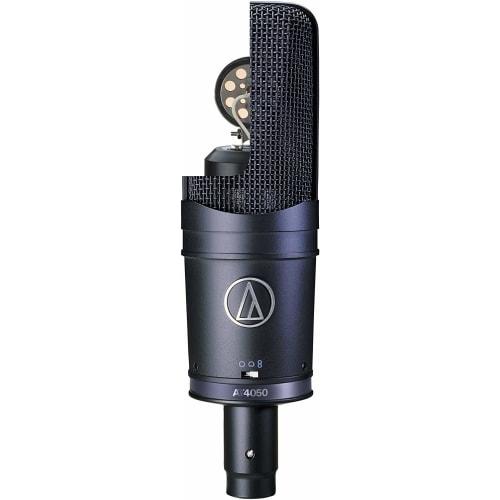

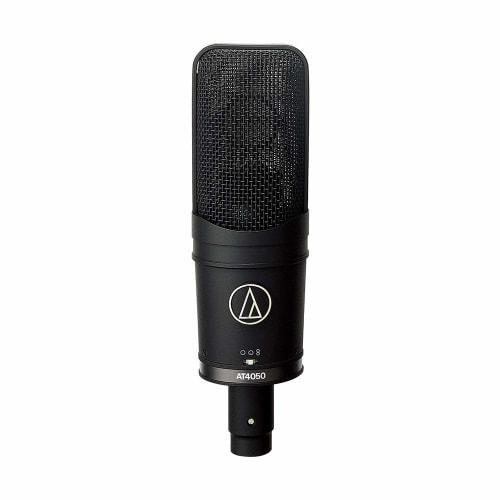

- Variable directivity transformerless condenser microphone with 1-inch large-diameter dual diaphragm
- Model: DC bias capacitor type
- Directional characteristics: omnidirectional, unidirectional, figure directional
- Frequency characteristics: 20-18,000Hz
- Low cut: 80Hz, 12dB/octave
2. PRODUCT DESCRIPTION:

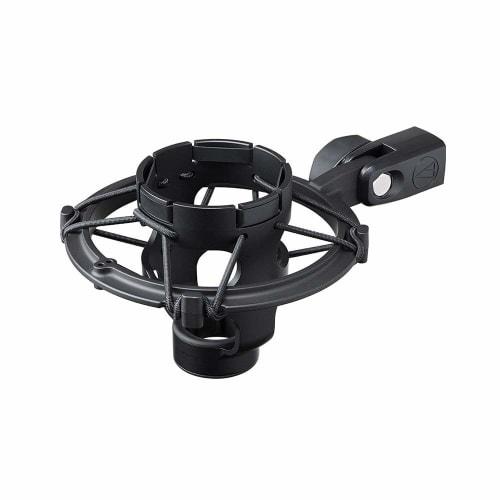

Product introduction A variable directional transformerless condenser microphone equipped with a 1-inch large-diameter dual diaphragm. ●We bring together advanced technology to meet the strict demands for sound in professional recordings, broadcast stations, stages, etc. Can be switched to three directivity: omnidirectional, unidirectional, and bidirectional. ●Clear high-mid range combined with excellent low-end quality, combined with advanced acoustic engineering to produce the highest performance features and quality. ●Dual diaphragm unit design ensures that the set directivity is maintained throughout the frequency range. ●Transformerless circuit eliminates low-frequency distortion and accurately responds to high-speed sound rises. ●The diaphragm, which uses a 2-micron gold vapor deposition film, undergoes a 5-step aging process to maintain an optimized state even after many years of use. ●An acoustically open housing reduces unnecessary internal reverberations. ●Excellent vibration isolation with dedicated shock mount. ●80Hz low-cut filter switch and 10dB pad switch are standard equipment. ●Consistent and reliable Audio-Technica standards with cutting-edge design and manufacturing technology. ●Technical data Model: DC bias capacitor type Directivity: Omnidirectional, unidirectional, bidirectional Frequency response: 20 to 18,000Hz Low cut: 80Hz, 12dB/octave Pad: -10db Sensitivity: -36dB (15.8mV) (0dB=1V/Pa, 1kHz) Output impedance: 100Ω Maximum input sound pressure level: 149dB SPL (1kHz THD1%) 159dB SPL (when pad is ON) Noise: 17dB SPL Dynamic range: 132dB (1kHz at Max SPL) SN ratio: 77dB (1kHz at 1Pa, A-weighted) Phantom power: 48VDC, 4.2mA Switch: Directivity switching, low cut ON/OFF Pad ON/OFF Finish: Black matte baked paint Mass: 510g Dimensions: Length: 188.0mm, maximum body diameter: 53.4mm Output connector: 3-pin XLR-M type Accessories: Shock mount AT8449a, conversion screw adapter (3/8"-5/8"), dust cover, case *48V phantom power supply is required for use. *The conversion screw adapter (3/8"-5/8") is already attached to the shock mount AT8449a. Attention (Disclaimer) > Please read *Returns are not possible except for initial defects.
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 1.578 kg
- Dimensions: 38.4 x 26.1 x 12.4 cm
4. SPECIFICATIONS:
- Brand: Audio Technica
- Model Number: AT4050
- Manufacturer: Audio Technica
